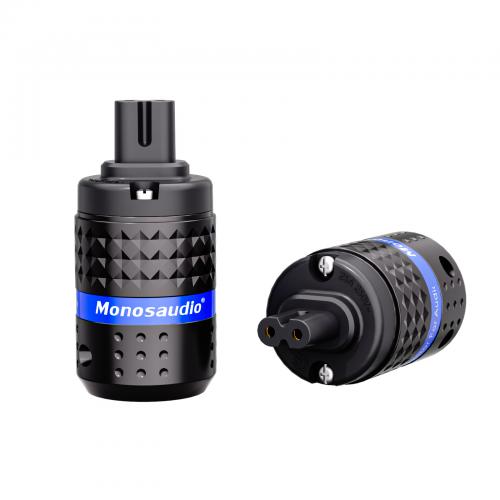

Model: M182G

Conductor:99.998% Pure Copper

Body:Nylon/Fiberglass
 (Bayer-2805)

Dimensions: 58mm H X 38.5mmφ Overall Length：79mm

Connections: Hex Screws

Suitable Wire: Max.5.5mm(10AWG to 17 AWG)

Rating: 25A/250V

Install The Cable Diameter: 6mm-18mm

Pins Plating:

4 Layer Plated Process :

1. Oxygen Free Copper Plated

2. Silver Plated

3.Palladium Plated

4. 24K Gold Plated
