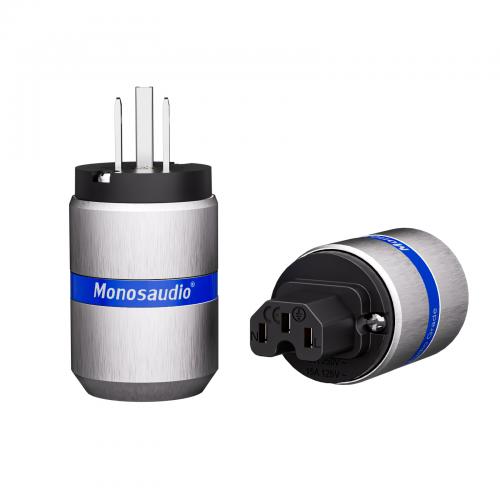

M106R/F106R

Model: M106R
Conductor:99.998% Pure Copper
Body:Aluminum Alloy
Dimensions: 61mm H X40mmφ Overall Length：82.5mm
Connections: Hex Screws
Suitable Wire: Max.4.5mm(11 to 14 AWG)
Rating: 16A 250V A.C.
Install The Cable Diameter: 10mm-20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. 24K Gold Plated

Model: F106R
Conductor: 99.998% Pure Copper
Body:Aluminum Alloy
Dimensions: 58mm H X 40mmφ Overall Length：80.5m
Connections:Set Screws
Suitable Wire: Max.6mm (10 to 14 AWG)
Rating: 15A/125V 10A/250V
Install The Cable Diameter: 10mm-20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. 24K Gold Plated
