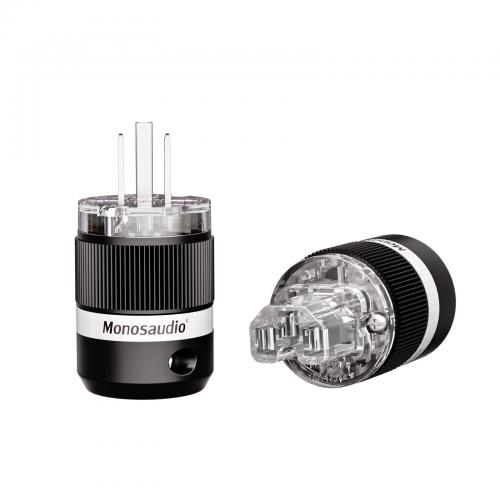

Model: M101R
Conductor:99.998% Pure Copper
Body:Nylon/Fiberglass
 (Bayer-2805)
Dimensions: 52.6mm H X 38.5mmφ Overall Length：73.5mm
Connections: Hex Screws
Suitable Wire: Max.4.5mm(11 to 14 AWG)
Rating: 16A 250V A.C.
Install The Cable Diameter: 6mm-18mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. 24K Gold Plated


Model: F101R
Conductor: 99.998% Pure Copper
Body:Nylon/Fiberglass
(Bayer-2805)
Dimensions: 49mm H X 38.5mmφ  Overall Length：72m
Connections:Set Screws
Suitable Wire: Max.6mm
(10 to 14 AWG)
Rating: 15A/125V 10A/250V
Install The Cable Diameter: 6mm-18mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. 24K Gold Plated
