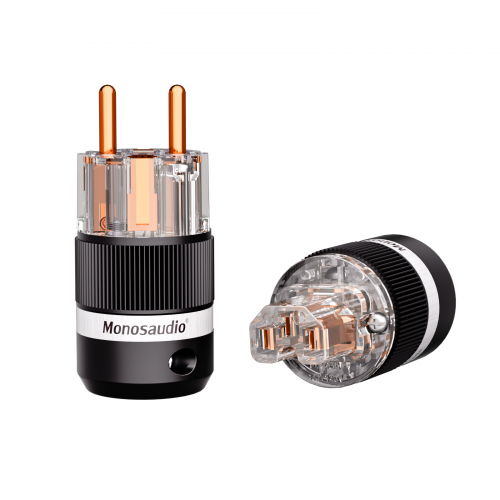

E101/F101

Model: E101R

Conductor:99.998% Pure Copper

Body:Nylon/Fiberglass

Dimensions: 64mm H X 38.5mmφ Overall Length：83.6mm

Connections: Hex Screws

Suitable Wire: Max.4.5mm(11 to 14 AWG)

Rating: 16A 250V A.C.

Install The Cable Diameter: 6mm-18mm

Pins Plating:

4 Layer Plated Process :

1. Oxygen Free Copper Plated

2. Silver Plated

3.Palladium Plated

4. Rhodium Plated

Model: F101R

Conductor: 99.998% Pure Copper

Body:Nylon/Fiberglass

Dimensions: 49mm H X 38.5mmφ Overall Length：72mm

Connections:Set Screws

Suitable Wire: Max.6mm (10 to 14 AWG)

Rating: 15A/125V 10A/250V

Install The Cable Diameter: 6mm-18mm

Pins Plating:

4 Layer Plated Process :

1. Oxygen Free Copper Plated

2. Silver Plated

3. Palladium Plated

4. Rhodium Plated
