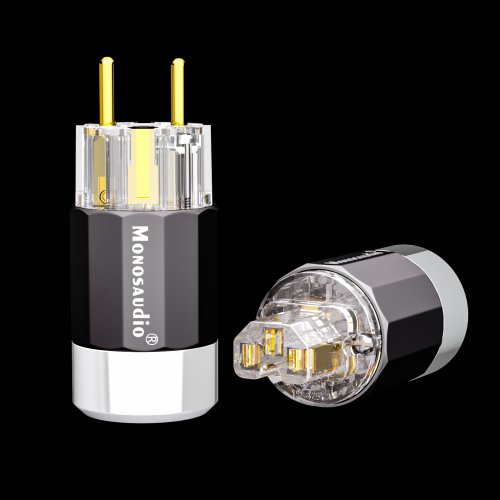

Model: E109G
Conductor:99.998% Pure Copper
Body:Aluminum alloy
Dimensions: 80.5mm H X 39.5mmφ Overall Length：99mm
Connections: Hex Screws
Suitable Wire: Max.4.5mm(11 to 14 AWG)
Rating: 16A 250V A.C.
Install The Cable Diameter: 6mm-18mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhodium Plated


Model: F109
G
Conductor: 99.998% Pure Copper
Body:Aluminum alloy
Dimensions: 65mm H X 39.5mmφ  Overall Length：88mm
Connections:Set Screws
Suitable Wire: Max.6mm
(10 to 14 AWG)
Rating: 15A/125V 10A/250V
Install The Cable Diameter: 6mm-18mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3. Palladium Plated
4. Rhodium Plated
