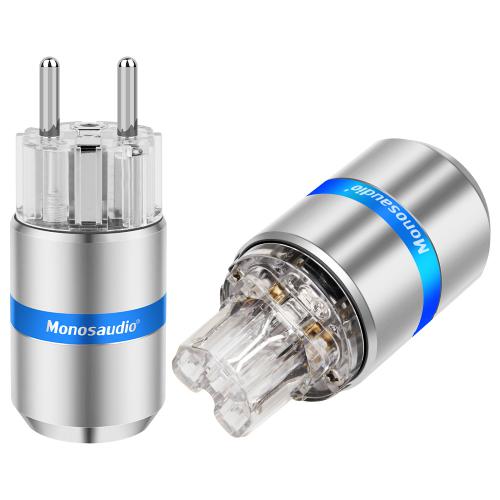

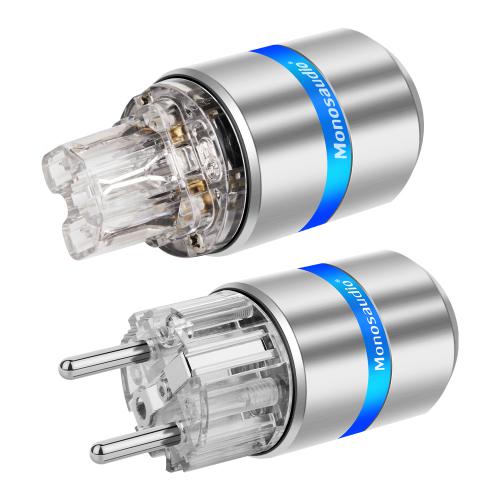

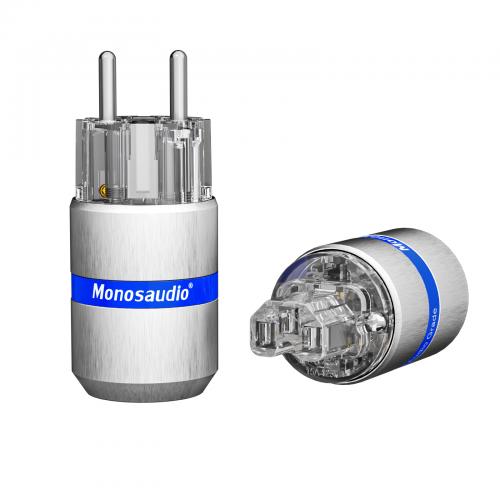

Model: E107R
Conductor:Pure Copper
Body:Aluminium Alloy
Dimensions: 52.6mm H X 38.5mm Over Length84mm
Connections: Hex Screws
Suitable Wire: Max.4.5MM
Rating: 16A 250V A.C.
Accommodates MAX cable: 20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhodium Plated

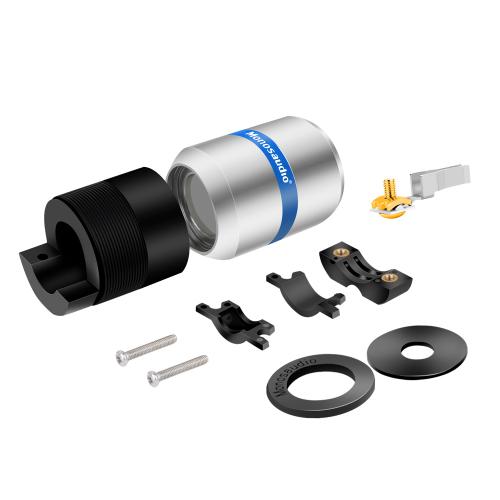

Model: F107R
Conductor:Pure Copper
Body：Aluminium Alloy
Dimensions(Female): 52.6mm H X 38.5mm Over Length72mm
Connections:Set Screws
Suitable Max Wire:8MM
Rating: 15A/125V 10A/250V
Accommodates MAX cable: 20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhodium Plated
