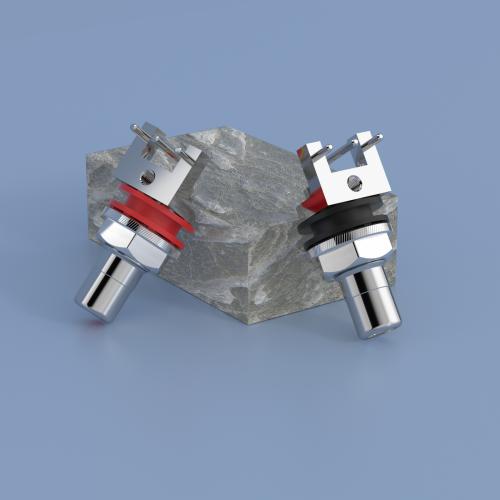

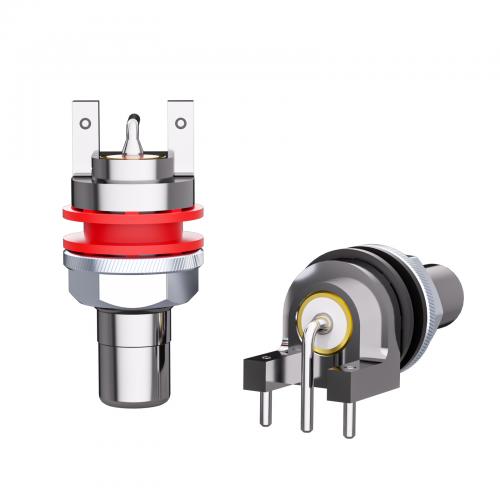

Model:C403R

Conductor Material: Pure Copper (99.998%CU)

Fix screw: Brass, Chrome Plated (Weak Magnatic)

Insulator material: Teflon

PA66 Washer Ring

Connection: Set Screw (Brass, Weak Magnatic)

Overall length: 34.5mm

Diameter: 14.5mm

For Panel Thickness: 2mm-4mm

PCB Mounting hole:2.5mm

4 Layer Plated

1 Layer: Red Plated , Improve Conductivity

2 Layer: Silver Plated, Weaken magnatic

3 Layer: Palladium Plated

4 Layer(Surface): Rhodium Plated (Thickness: 5U")
