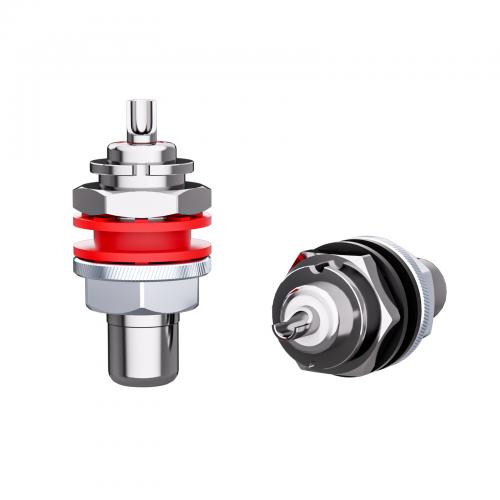

Model:C401R

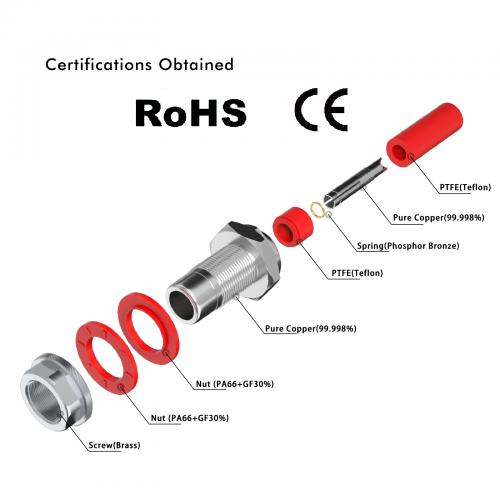

Conductor Material: Pure Copper (99.998%CU)

Fix screw: Brass, Chrome Plated (Weak Magnatic)

Insulator material: Teflon

PA66 Washer Ring

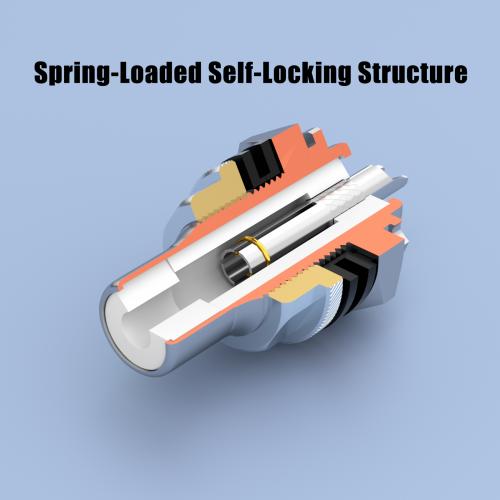

Connection: Set Screw (Brass, Weak Magnatic)

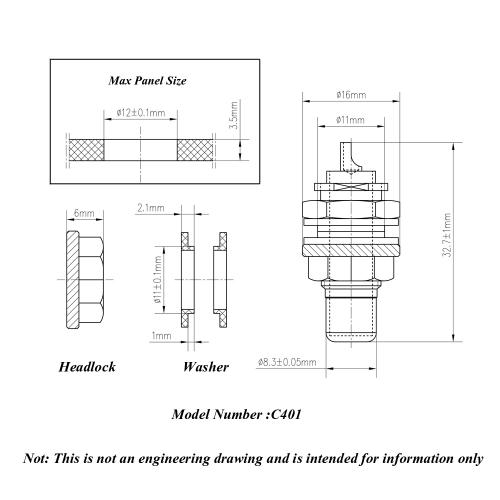

Overall length: 32.7mm

Diameter: 16mm

For Panel Thickness: 2mm-4mm

For Cable/Wire Diameter: 4mm

Free Hex wrench



24K Gold Plated

4 Layer Plated

1 Layer: Red Plated , Improve Conductivity

2 Layer: Silver Plated, Weaken magnatic

3 Layer: Palladium Plated

4 Layer(Surface): Rhodium Plated (Thickness: 5U")
