Cable Parameter:

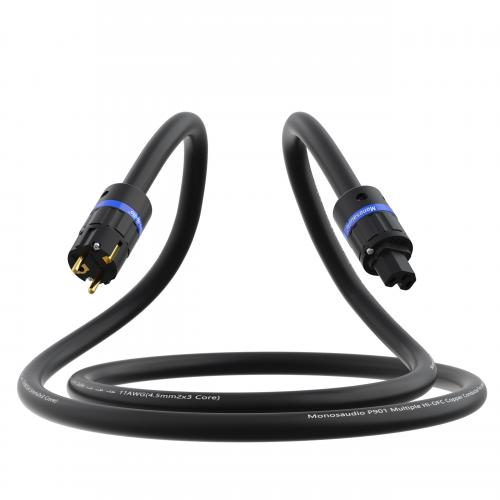

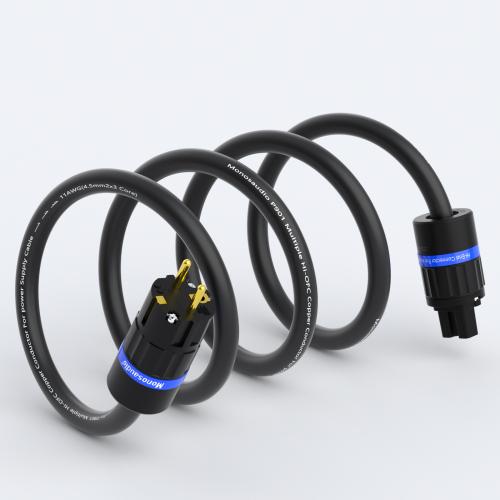

Model:P901
Conductor: Hi-OFC Copper
Wire diameter: 4.5Sq ( /0.32mm/0.5mm/0.254mm twist Cable)
Structure: 3P Cabtire
Insulator（inner）: Polyvinyl Chloride
Outer Sheath: Polyurethane
Shield:
1st：100% Copper Foil(w/drain wire)
2nd：100% Braid Copper
O.D. :14.0mm
Rated V/A: 600V / 30A

Connector Plug Parameter:

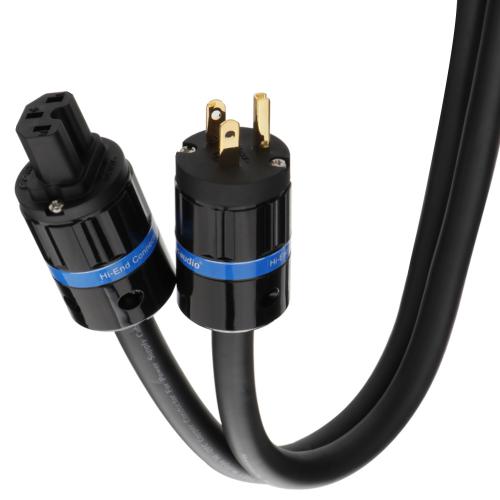

Model: M104G
Conductor:99.998% Pure Copper
Body:Nylon/Fiberglass
 (Bayer-2805)
Dimensions: 57.5mm H X 38.5mmφ Overall Length：78.5mm
Connections: Hex Screws
Suitable Wire: Max.4.5mm(11 to 14 AWG)
Rating: 15A 250V A.C.
Install The Cable Diameter: 10mm-20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. 24K Gold Plated


Model: F104G
Conductor: 99.998% Pure Copper
Body:Nylon/Fiberglass(Bayer-2805)
Dimensions: 54mm H X 38.5mmφ  Overall Length：77m
Connections:Set Screws
Suitable Wire: Max.6mm
(10 to 14 AWG)
Rating: 15A/125V 10A/250V
Install The Cable Diameter: 10mm-20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. 24K Gold Plated
